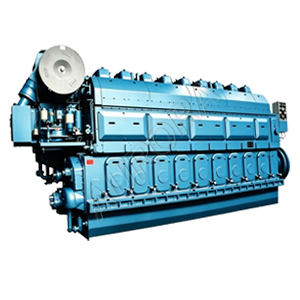

9G32H Marine Diesel Engine, manufactured by Guangzhou Diesel Engine Factory Co., Ltd. (GDF), is a reliable 9 cylinder, 4-stroke in-line marine diesel engine delivering 4963 kW at 660 r/min, with a 320 mm bore and 480 mm stroke. Fully compliant with IMO Tier II emission standards, it provides reliable performance, fuel efficiency, and long service life.
9G32H Engine Technical Specifications
| Engine Model | 9G32H |
| Rated Power | 4963 kW |
| Rated Speed | 660 r/min |
| Number of Cylinders | 9 |
| Bore × Stroke | 320 ×480 mm |
| Mean Effective Pressure | 2.598 MPa |
| Maximum Combustion Pressure | ≤ 21 MPa |
| Weight | 54000 kg |
| Emission Standard | IMO Tier II |
Key Features of the 9G32H Marine Diesel Engine
- Medium-speed, 4-stroke marine diesel engine
- Reliable and fuel-efficient performance
- IMO Tier II compliant
- Robust and durable design
- Easy maintenance
- Long service life
- 9G32H Marine Diesel Engine Datasheet
- 9G32H Outline Dimension Drawing
- 9G32H Operation Manual
- 9G32H Spare Parts Catalog
* Specifications subject to change without prior notice in the interest of continual product improvement. Contact our sales representative for engineering specifications, survey society approvals and classifications.
