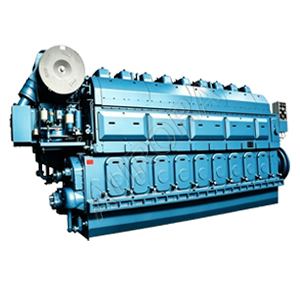

8G32 Marine Diesel Engine, manufactured by Guangzhou Diesel Engine Factory Co., Ltd. (GDF), is a reliable 8 cylinder, 4-stroke in-line marine diesel engine delivering 3552 kW at 600 r/min, with a 320 mm bore and 480 mm stroke. Fully compliant with IMO Tier II emission standards, it provides reliable performance, fuel efficiency, and long service life.
8G32 Engine Technical Specifications
| Engine Model | 8G32 |
| Rated Power | 3552 kW |
| Rated Speed | 600 r/min |
| Number of Cylinders | 8 |
| Bore × Stroke | 320 ×480 mm |
| Mean Effective Pressure | 2.30 MPa |
| Maximum Combustion Pressure | ≤ 19 MPa |
| Weight | 46000 kg |
| Emission Standard | IMO Tier II |
Key Features of the 8G32 Marine Diesel Engine
- Medium-speed, 4-stroke marine diesel engine
- Reliable and fuel-efficient performance
- IMO Tier II compliant
- Robust and durable design
- Easy maintenance
- Long service life
- 8G32 Marine Diesel Engine Datasheet
- 8G32 Outline Dimension Drawing
- 8G32 Operation Manual
- 8G32 Spare Parts Catalog
* Specifications subject to change without prior notice in the interest of continual product improvement. Contact our sales representative for engineering specifications, survey society approvals and classifications.
