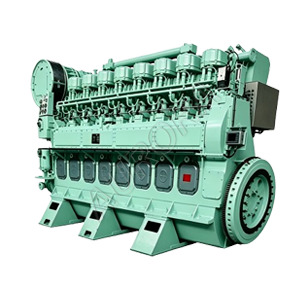

8320ZCd-6S Marine Diesel Engine, manufactured by Guangzhou Diesel Engine Factory Co., Ltd. (GDF), is a reliable 8-cylinder, 4-stroke in-line marine diesel engine delivering 2060 kW at 550 r/min, with a 320 mm bore and 370 mm stroke. Fully compliant with IMO Tier II emission standards, it provides reliable performance, fuel efficiency, and long service life.
8320ZCd-6S Engine Technical Specifications
| Engine Model | 8320ZCd-6S |
| Rated Power | 2060 kW |
| Rated Speed | 550 r/min |
| Number of Cylinders | 8 |
| Bore × Stroke | 320 ×370 mm |
| Mean Effective Pressure | 1.889 MPa |
| Maximum Combustion Pressure | ≤ 13.5 MPa |
| Weight | 30000 kg |
| Emission Standard | IMO Tier II |
Key Features of the 8320ZCd-6S Marine Diesel Engine
- Medium-speed, 4-stroke marine diesel engine
- Reliable and fuel-efficient performance
- IMO Tier II compliant
- Robust and durable design
- Easy maintenance
- Long service life
- 8320ZCd-6S Marine Diesel Engine Datasheet
- 8320ZCd-6S Outline Dimension Drawing
- 8320ZCd-6S Operation Manual
- 8320ZCd-6S Spare Parts Catalog
* Specifications subject to change without prior notice in the interest of continual product improvement. Contact our sales representative for engineering specifications, survey society approvals and classifications.
