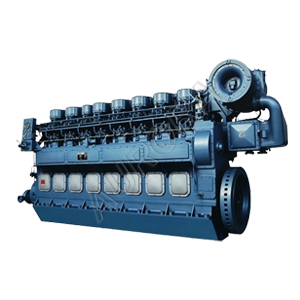

6320ZCd Marine Diesel Engine, manufactured by Guangzhou Diesel Engine Factory Co., Ltd. (GDF), is a reliable 6-cylinder, 4-stroke in-line marine diesel engine delivering 900 kW at 400 r/min, with a 320 mm bore and 440 mm stroke. Fully compliant with IMO Tier II emission standards, it provides reliable performance, fuel efficiency, and long service life.
6320ZCd Engine Technical Specifications
| Engine Model | 6320ZCd |
| Rated Power | 970 kW |
| Rated Speed | 400 r/min |
| Number of Cylinders | 6 |
| Bore × Stroke | 320 ×440 mm |
| Mean Effective Pressure | 1.372 MPa |
| Maximum Combustion Pressure | ≤ 9.5 MPa |
| Weight | 23,000 kg |
| Emission Standard | IMO Tier II |
Key Features of the 6320ZCd Marine Diesel Engine
- Medium-speed, 4-stroke marine diesel engine
- Reliable and fuel-efficient performance
- IMO Tier II compliant
- Robust and durable design
- Easy maintenance
- Long service life
- 6320ZCd Marine Diesel Engine Datasheet
- 6320ZCd Outline Dimension Drawing
- 6320ZCd Operation Manual
- 6320ZCd Spare Parts Catalog
* Specifications subject to change without prior notice in the interest of continual product improvement. Contact our sales representative for engineering specifications, survey society approvals and classifications.
