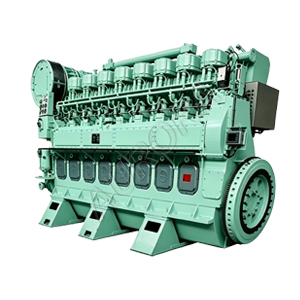

6320ZCd-10S Marine Diesel Engine, manufactured by Guangzhou Diesel Engine Factory Co., Ltd. (GDF), is a reliable 6-cylinder, 4-stroke in-line marine diesel engine delivering 1765 kW at 625 r/min, with a 320 mm bore and 370 mm stroke. Fully compliant with IMO Tier II emission standards, it provides reliable performance, fuel efficiency, and long service life.
6320ZCd-10S Engine Technical Specifications
| Engine Model | 6320ZCd-10S |
| Rated Power | 1765 kW |
| Rated Speed | 625 r/min |
| Number of Cylinders | 6 |
| Bore × Stroke | 320 ×370 mm |
| Mean Effective Pressure | 1.899 MPa |
| Maximum Combustion Pressure | ≤ 13.5 MPa |
| Weight | 23,000 kg |
| Emission Standard | IMO Tier II |
Key Features of the 6320ZCd-10S Marine Diesel Engine
- Medium-speed, 4-stroke marine diesel engine
- Reliable and fuel-efficient performance
- IMO Tier II compliant
- Robust and durable design
- Easy maintenance
- Long service life
- 6320ZCd-10S Marine Diesel Engine Datasheet
- 6320ZCd-10S Outline Dimension Drawing
- 6320ZCd-10S Operation Manual
- 6320ZCd-10S Spare Parts Catalog
* Specifications subject to change without prior notice in the interest of continual product improvement. Contact our sales representative for engineering specifications, survey society approvals and classifications.
